4T 2V - New Fly 2012 — Carter

Onderdelen — beweeg over een onderdeel of een groene stip: ze lichten samen op (klik om vast te zetten)

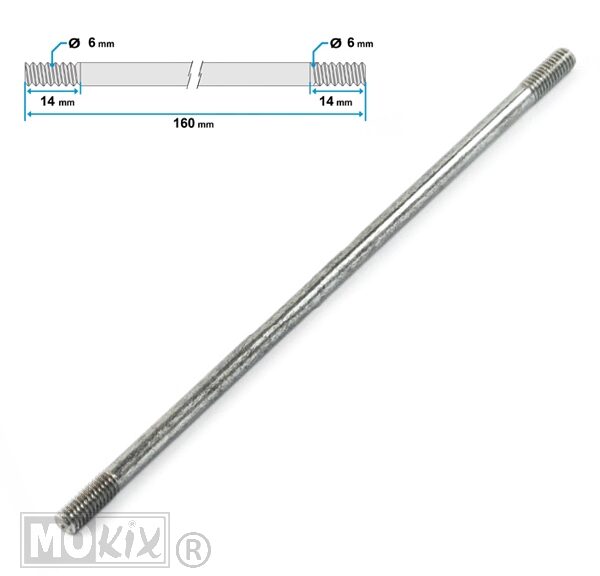

1Cilinder Tapeind UNI M6 160mm (1) - BollardCilinder Tapeind UNI M6 160mm (1)Art.nr BO-88346Op voorraad 5,93 Incl. BTW
2Bronzenbus-Bendix Piaggio 2T/4T 12x8x8Bronzenbus-Bendix Piaggio 2T/4T 12x8x8Art.nr BO-90946Op voorraad 6,47 Incl. BTW
3Keerring 17  x28  x7   DGKeerring 17 x28 x7 DGArt.nr BO-10060Op voorraad 6,47 Incl. BTW
4Lager NTN 17-40-12 6203 C3 (1)Lager NTN 17-40-12 6203 C3 (1)Art.nr BO-4228Op voorraad 11,56 Incl. BTW

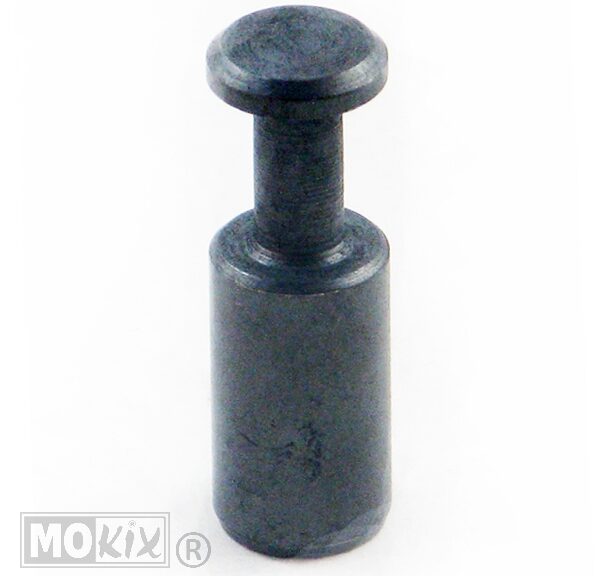

5Piaggio LX PINPiaggio LX PINArt.nr BO-483785Op voorraad 11,83 Incl. BTW

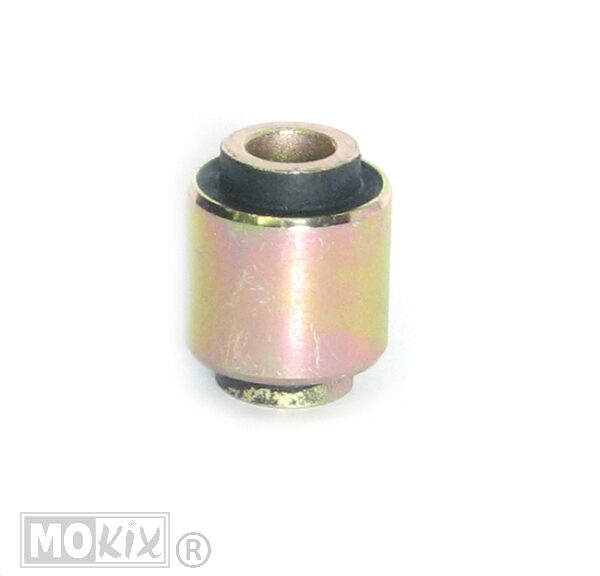

6Motorsilentblok Piaggio FLY/ZIP 4T 24x10x30 ORGMotorsilentblok Piaggio FLY/ZIP 4T 24x10x30 ORGArt.nr BO-486081Op voorraad 11,92 Incl. BTW

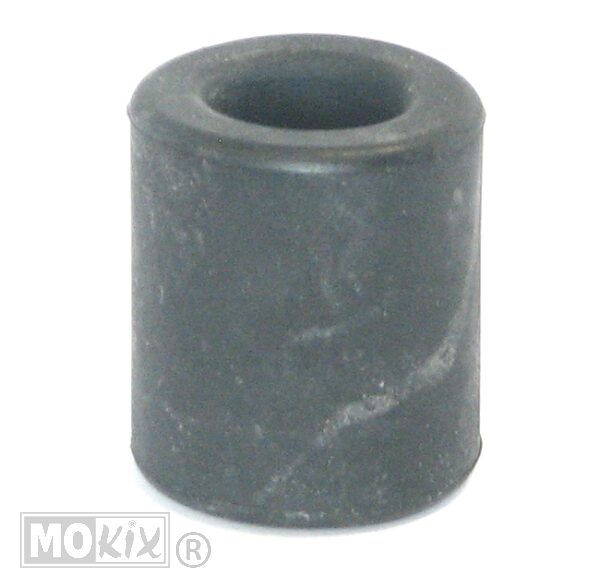

7Motorophangrubber Piaggio 2T/4T 23x12-27 ORGMotorophangrubber Piaggio 2T/4T 23x12-27 ORGArt.nr BO-267823Op voorraad 8,83 Incl. BTW

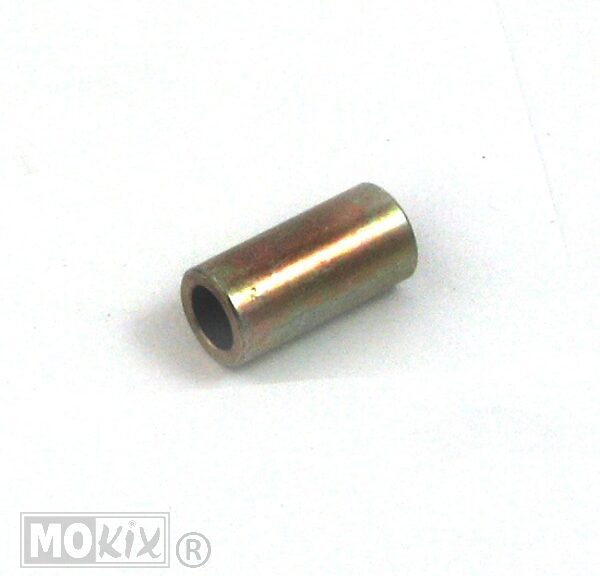

8Vulbus Motorophangrubber Piaggio 2T/4T 16x10-33Vulbus Motorophangrubber Piaggio 2T/4T 16x10-33Art.nr BO-266625Op voorraad 6,84 Incl. BTW
10Lager NTN 17-40-12 6203 C3 (1)Lager NTN 17-40-12 6203 C3 (1)Art.nr BO-4228Op voorraad 11,56 Incl. BTW

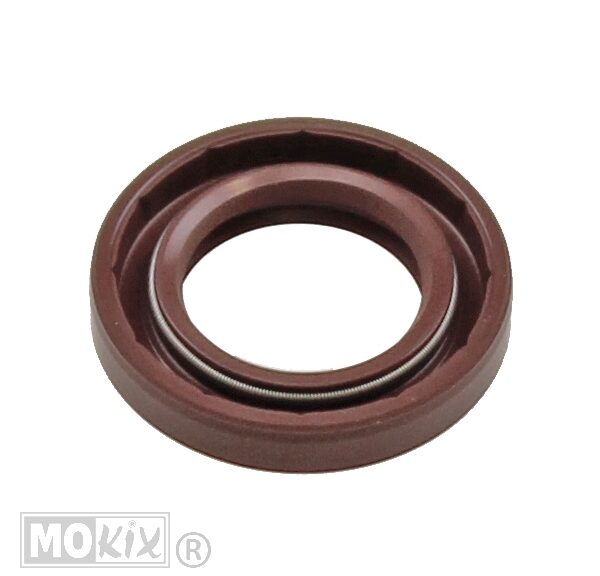

11Keerring 17  x28  X 5 DGS  VitonKeerring 17 x28 X 5 DGS VitonArt.nr BO-10569Op voorraad 9,74 Incl. BTW
12Carter-Pasbus  9.5 x14.4 Piaggio ORGCarter-Pasbus 9.5 x14.4 Piaggio ORGArt.nr BO-239388Op voorraad 5,93 Incl. BTW
14Inbus-Bout M 5x12 Elvz 25stuks - BollardInbus-Bout M 5x12 Elvz 25stuksArt.nr BO-214512Op voorraad 6,84 Incl. BTW
15Bevestigingshuis Oliemixpomp C25/4T - PiaggioBevestigingshuis Oliemixpomp C25/4TArt.nr BO-969625Op voorraad 8,02 Incl. BTW

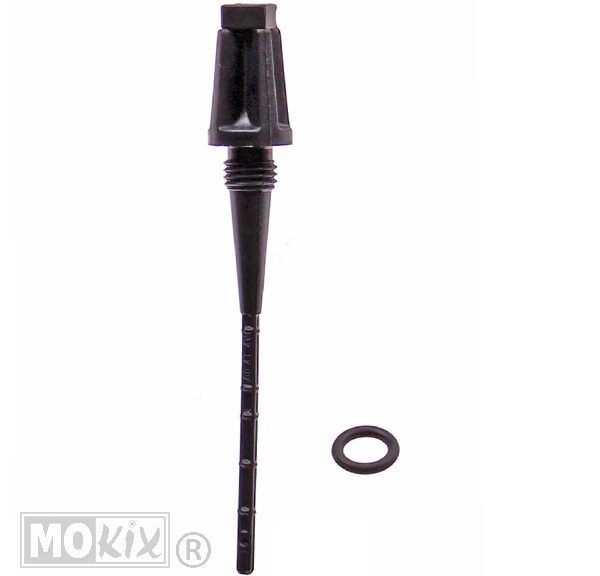

16Oliepeistok Piaggio 50cc 2T/4T WielnaafOliepeistok Piaggio 50cc 2T/4T WielnaafArt.nr BO-94110Op voorraad 9,65 Incl. BTW
17Flens Frame Bouten SW10 M6x40  Blank  10st - BollardFlens Frame Bouten SW10 M6x40 Blank 10stArt.nr BO-89561Op voorraad 6,84 Incl. BTW
18Lager Piaggio 4T 50cc 20x60x13  Krukas Links ORGLager Piaggio 4T 50cc 20x60x13 Krukas Links ORGArt.nr BO-82671ROp voorraad 24,26 Incl. BTW
Over deze tekeningen

Het carter houdt het hart van je 4T 2V - New Fly 2012 bij elkaar en dicht. Bij een revisie of een lekkage wil je precies de juiste pakking, lager of helft hebben — op deze tekening vind je elk carterdeel terug op zijn positienummer. Bekijk alle Piaggio-onderdelen
