4T 4V — Carter

Onderdelen — beweeg over een onderdeel of een groene stip: ze lichten samen op (klik om vast te zetten)

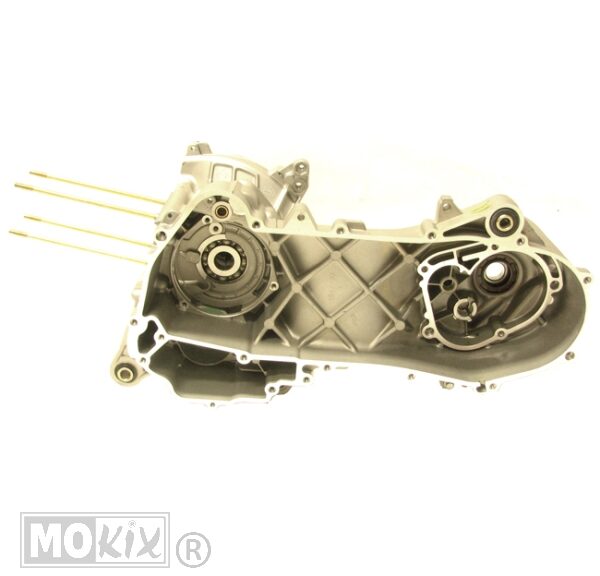

1Carter SET Piaggio  / Vespa LX/LXV 4T 4V ORGCarter SET Piaggio / Vespa LX/LXV 4T 4V ORGArt.nr BO-8488565Op voorraad 1.017,43 Incl. BTW
2Lager SKF 20-47-14 6204 C4 (1)Lager SKF 20-47-14 6204 C4 (1)Art.nr BO-85020Op voorraad 14,28 Incl. BTW
3Lager Piaggio 4T 50cc 20x60x13  Krukas Links ORGLager Piaggio 4T 50cc 20x60x13 Krukas Links ORGArt.nr BO-82671ROp voorraad 24,26 Incl. BTW
4Vulbus Motorophangrubber Piaggio 2T/4T 16x10-33Vulbus Motorophangrubber Piaggio 2T/4T 16x10-33Art.nr BO-266625Op voorraad 6,84 Incl. BTW
5Motorophangrubber Piaggio 2T/4T 23x12-27 ORGMotorophangrubber Piaggio 2T/4T 23x12-27 ORGArt.nr BO-267823Op voorraad 8,83 Incl. BTW
7Carter-Pasbus  9.5 x14.4 Piaggio ORGCarter-Pasbus 9.5 x14.4 Piaggio ORGArt.nr BO-239388Op voorraad 5,93 Incl. BTW
8Bronzenbus-Bendix Piaggio 2T/4T 12x8x8Bronzenbus-Bendix Piaggio 2T/4T 12x8x8Art.nr BO-90946Op voorraad 6,47 Incl. BTW

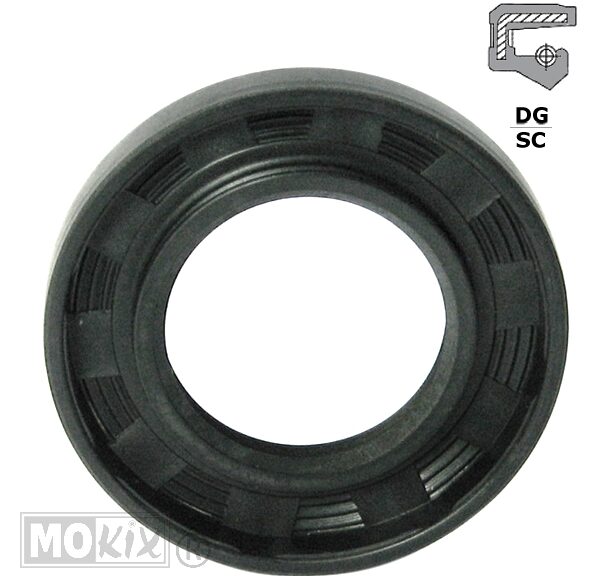

9Keerring 28  x47  x7 DG RolfKeerring 28 x47 x7 DG RolfArt.nr BO-10122Op voorraad 8,29 Incl. BTW
10Cilinder Tapeind PEU/SYM/PIA 4T (Nt Motor) M6x178 - BollardCilinder Tapeind PEU/SYM/PIA 4T (Nt Motor) M6x178Art.nr BO-92504Op voorraad 6,47 Incl. BTW
11Piaggio LX PINPiaggio LX PINArt.nr BO-483785Op voorraad 11,83 Incl. BTW
12Motorsilentblok Piaggio FLY/ZIP 4T 24x10x30 ORGMotorsilentblok Piaggio FLY/ZIP 4T 24x10x30 ORGArt.nr BO-486081Op voorraad 11,92 Incl. BTW
13Flens Frame Bouten SW10 M6x40  Blank  10st - BollardFlens Frame Bouten SW10 M6x40 Blank 10stArt.nr BO-89561Op voorraad 6,84 Incl. BTW
14Bevestigingshuis Oliemixpomp C25/4T - PiaggioBevestigingshuis Oliemixpomp C25/4TArt.nr BO-969625Op voorraad 8,02 Incl. BTW
15Inbus-Bout M 5x12 Elvz 25stuks - BollardInbus-Bout M 5x12 Elvz 25stuksArt.nr BO-214512Op voorraad 6,84 Incl. BTW
16Oliepeistok Piaggio 50cc 2T/4T WielnaafOliepeistok Piaggio 50cc 2T/4T WielnaafArt.nr BO-94110Op voorraad 9,65 Incl. BTW
17Oliepeistok Piaggio 50cc 2T/4T WielnaafOliepeistok Piaggio 50cc 2T/4T WielnaafArt.nr BO-94110Op voorraad 9,65 Incl. BTW
18Originele Piaggio Vespa aftapplug inbus M8x12 OEM-nummer 269755Aftapplug Piaggio Origineel Inbus M8x12 Piaggio, Vespa 269755Art.nr PE-31139Op voorraad 4,77 Incl. BTW
Olie-Aftapplug Piaggio 2T Alle ModellenOlie-Aftapplug Piaggio 2T Alle ModellenArt.nr BO-5309Op voorraad 5,93 Incl. BTW
19Fiber-Ring  8  x12mm (10) - BollardFiber-Ring 8 x12mm (10)Art.nr BO-10173Op voorraad 5,66 Incl. BTW
21Keerring 30  x47  x6    PiaggioKeerring 30 x47 x6 PiaggioArt.nr BO-478498Op voorraad 7,20 Incl. BTW
