2T AC — Rear Brake

Findings — move over an element or a green dot: they light up together (click to lock)

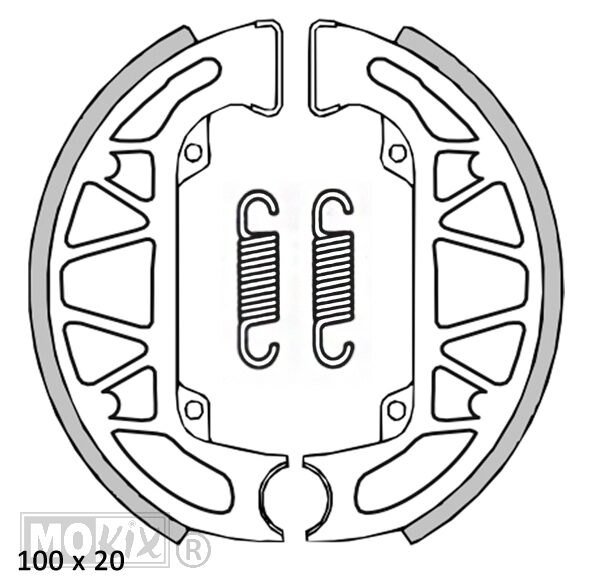

1Brake shoe SET Piaggio Typhoon/Sfera RMSBrake shoe SET Piaggio Typhoon/Sfera RMSArt. no. BO-225120301In Stock 13,79 Incl. VAT
3Brake shoe set-spring Piaggio (1) ORGBrake shoe set-spring Piaggio (1) ORGArt. no. BO-647384In Stock 4,99 Incl. VAT
5Flange Frame Bolts SW10 M6x35 Blank 10pcs - BollardFlange Frame Bolts SW10 M6x35 Plain 10 pcsArt. no. BO-89559In Stock 5,24 Incl. VAT
6Brake Key Lever Piaggio LX/Primavera/FLY/S ORGBrake Key Lever Piaggio LX/Primavera/FLY/S ORGArt. no. BO-833428In Stock 12,69 Incl. VAT
7Oil Drain Plug Piaggio 2T All ModelsOil Drain Plug Piaggio 2T All ModelsArt. no. BO-5309In Stock 4,65 Incl. VAT
Original Piaggio Vespa drain plug Allen key M8x12 OEM number 269755Drain plug Piaggio Original Allen M8x12 Piaggio, Vespa 269755Art. no. PE-31139In Stock 4,82 Incl. VAT
8Fiber Ring 8 x12mm (10) - BollardFiber-Ring 8 x12mm (10)Art. no. BO-10173In Stock 4,39 Incl. VAT
About these drawings

Your rear brake must always engage reliably on your 2T ACOn this drawing, you can find the brake parts by their position number, so that you order the correct shoes, springs, or cable and brake safely again. View all Piaggio parts
